Self built L shaped bracket for full spherical panorama photography



The aim was to build a very compact bracket that is easily adaptable for both lenses that I have for this body. It should have used also as a prototype for an optimised model but later I decided to use Novoflex parts. However this construction is still very lightweight, reliable and small.

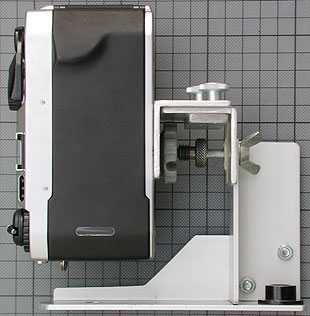

VR bracket - rear view Rear view (p=0), grids are 1 x 1 cm

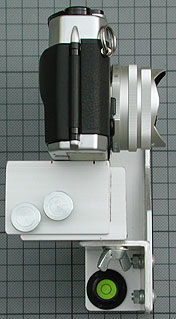

VR bracket - view from above View from above, camera aims at the same direction as in the upper image

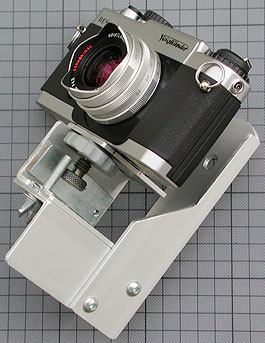

VR bracket - view from the side Camera in zenith position (p=90)
